Overview

Non-combustible Sarking

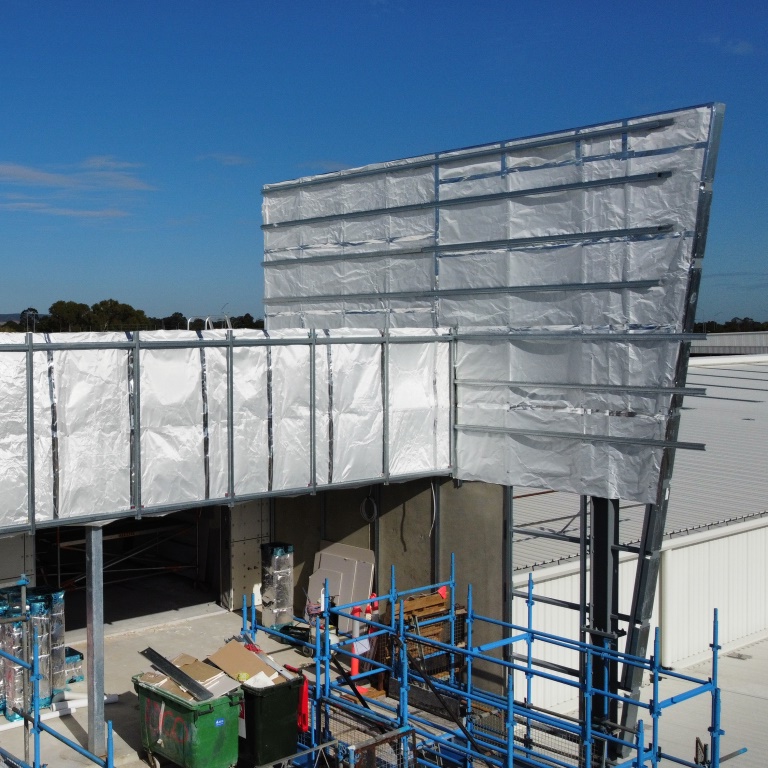

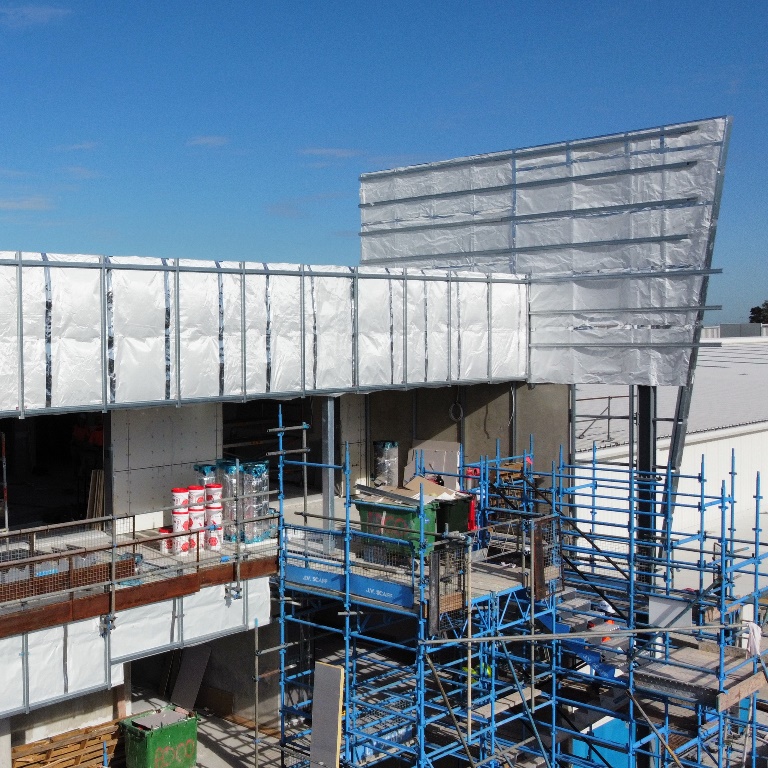

FIRESPAN non-combustible wall wrap and sarking is a heavy duty membrane which is BCA compliant and Deemed-to-Satisfy non-combustible for use in exterior cladding systems on all types of construction. Tested in accordance with AS 1530.1 and AS 1530.3 fire standards, FIRESPAN is available in waterproof and perforated variations. The reflective foil face on one side provides extra R-value when facing an air cavity and FIRESPAN is classified as a barrier to radiant heat, moisture ingress, draughts and dust penertration when installed as per AS 4200.2.


NCC 2022 Non-combustible

FIRESPAN membranes are all Deemed-to-Satisfy non-combustible in accordance with either NCC 2022 Clause C2D10(6)(f) and/or (g) meaning they can be used on any building of types A, B and C construction.

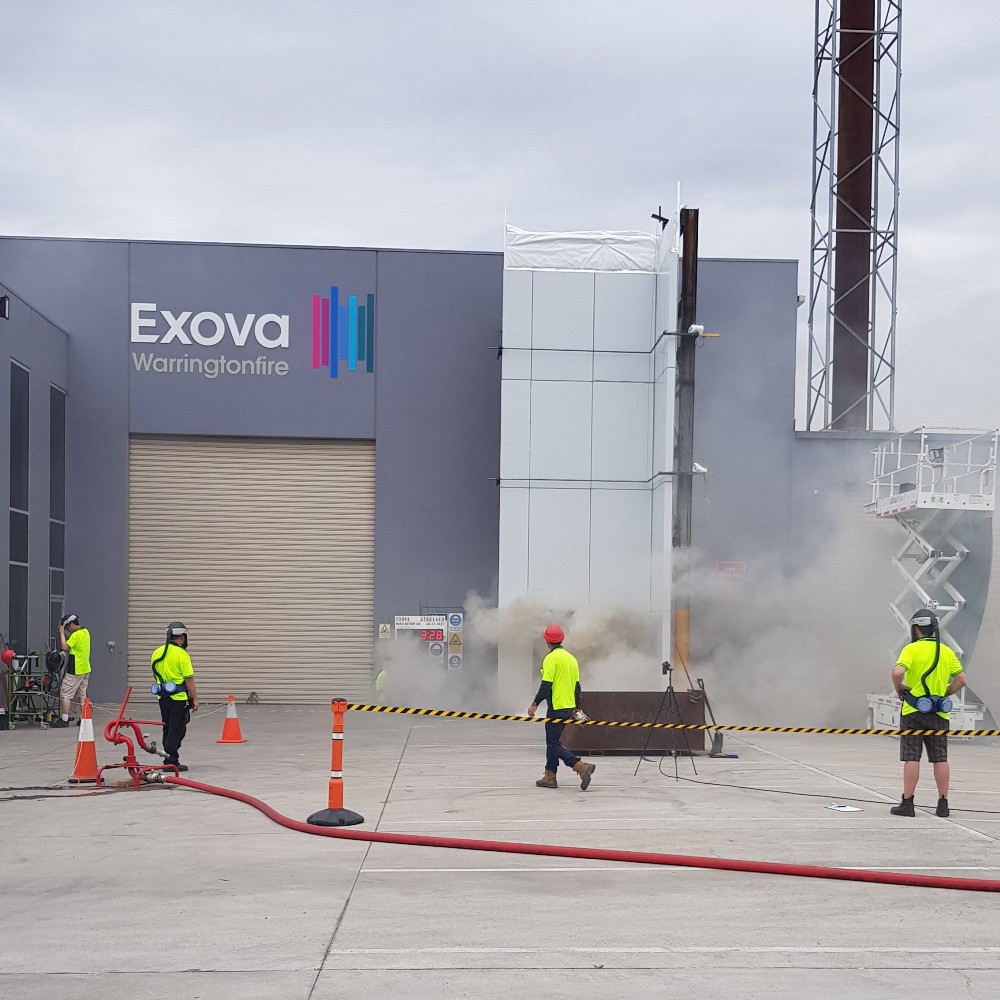

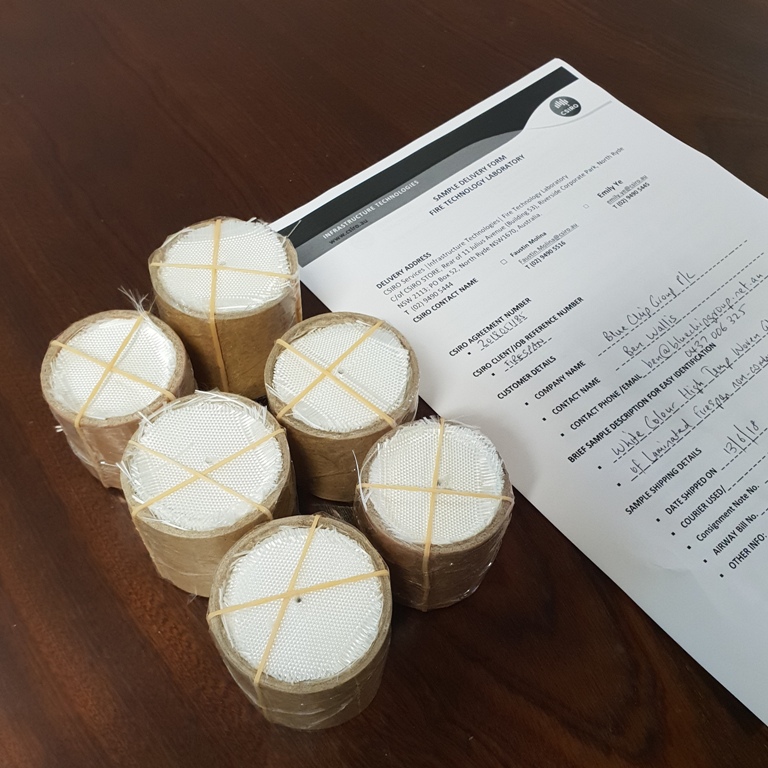

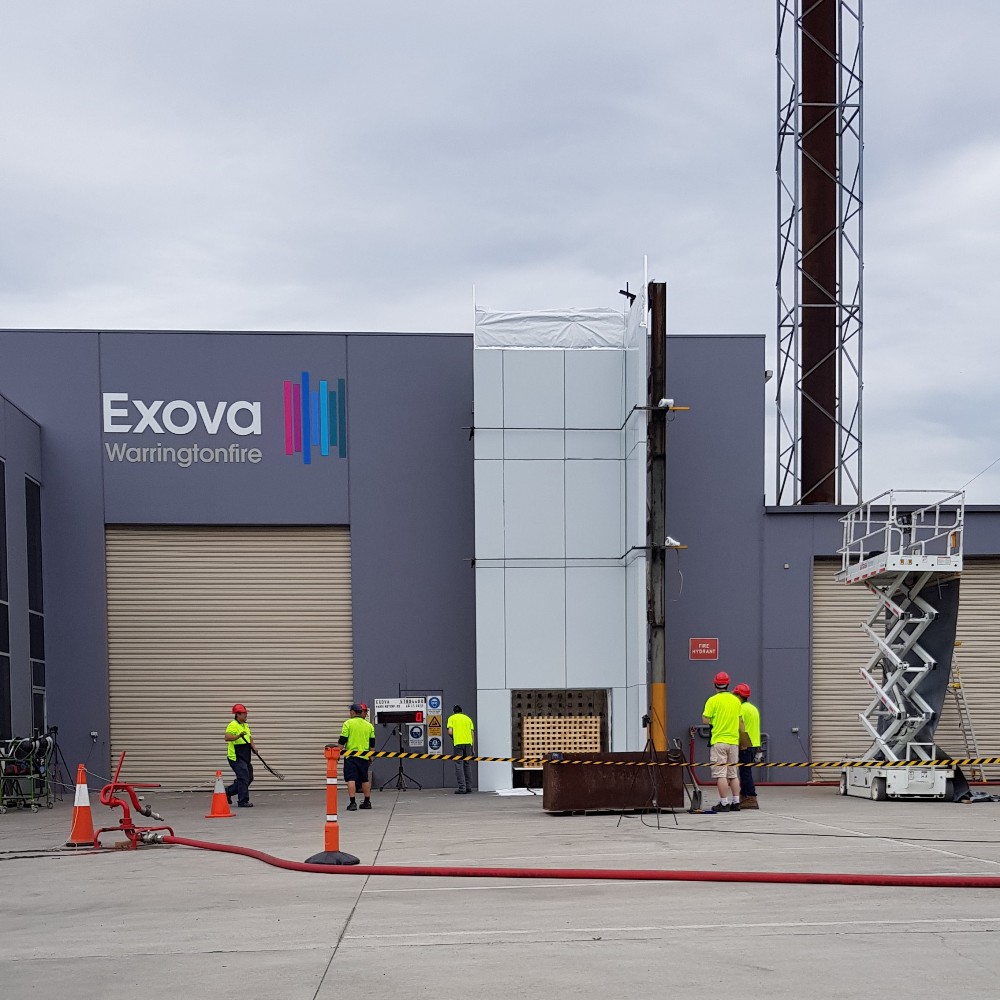

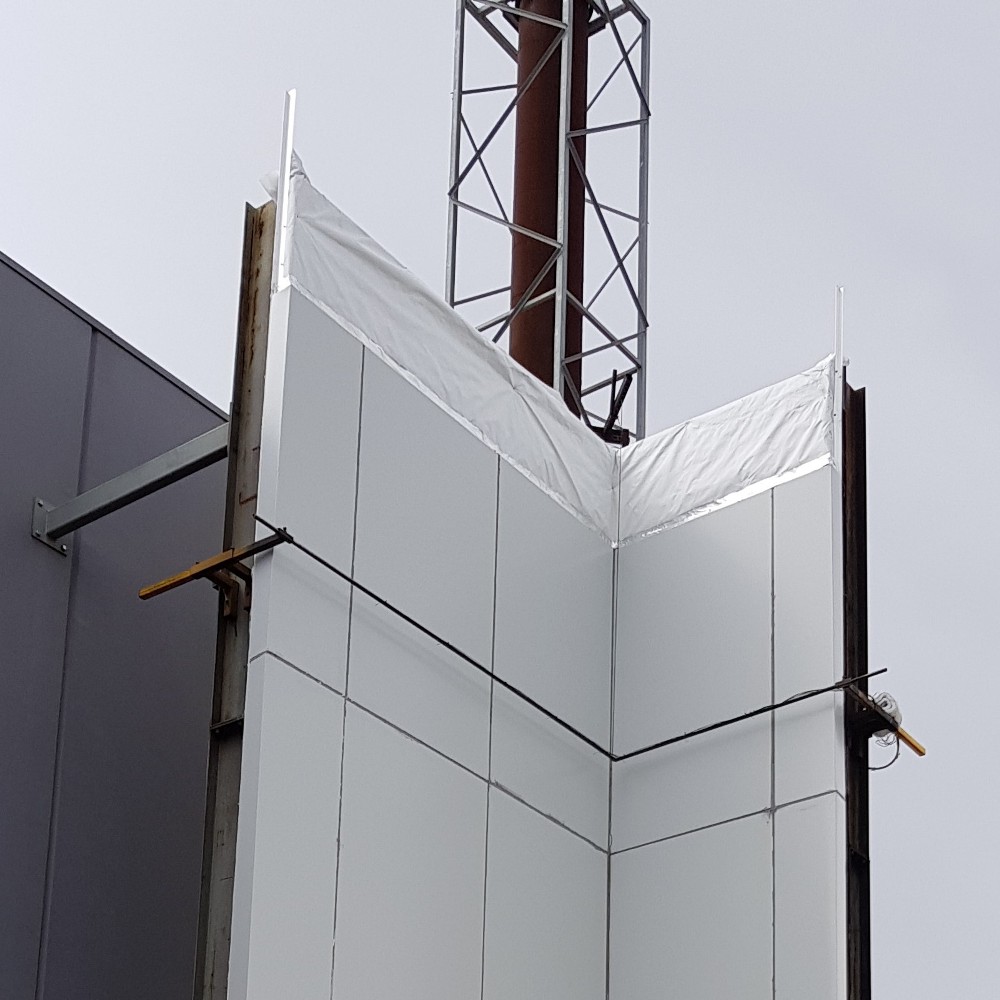

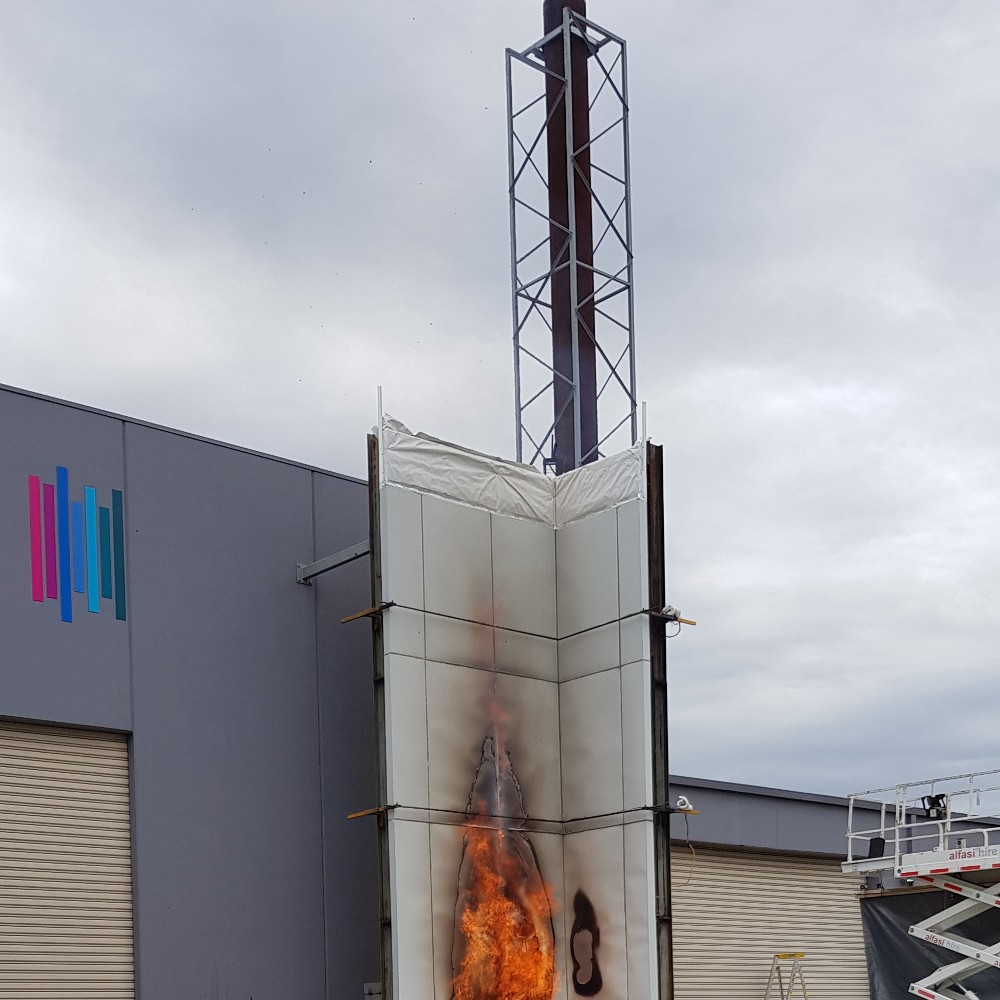

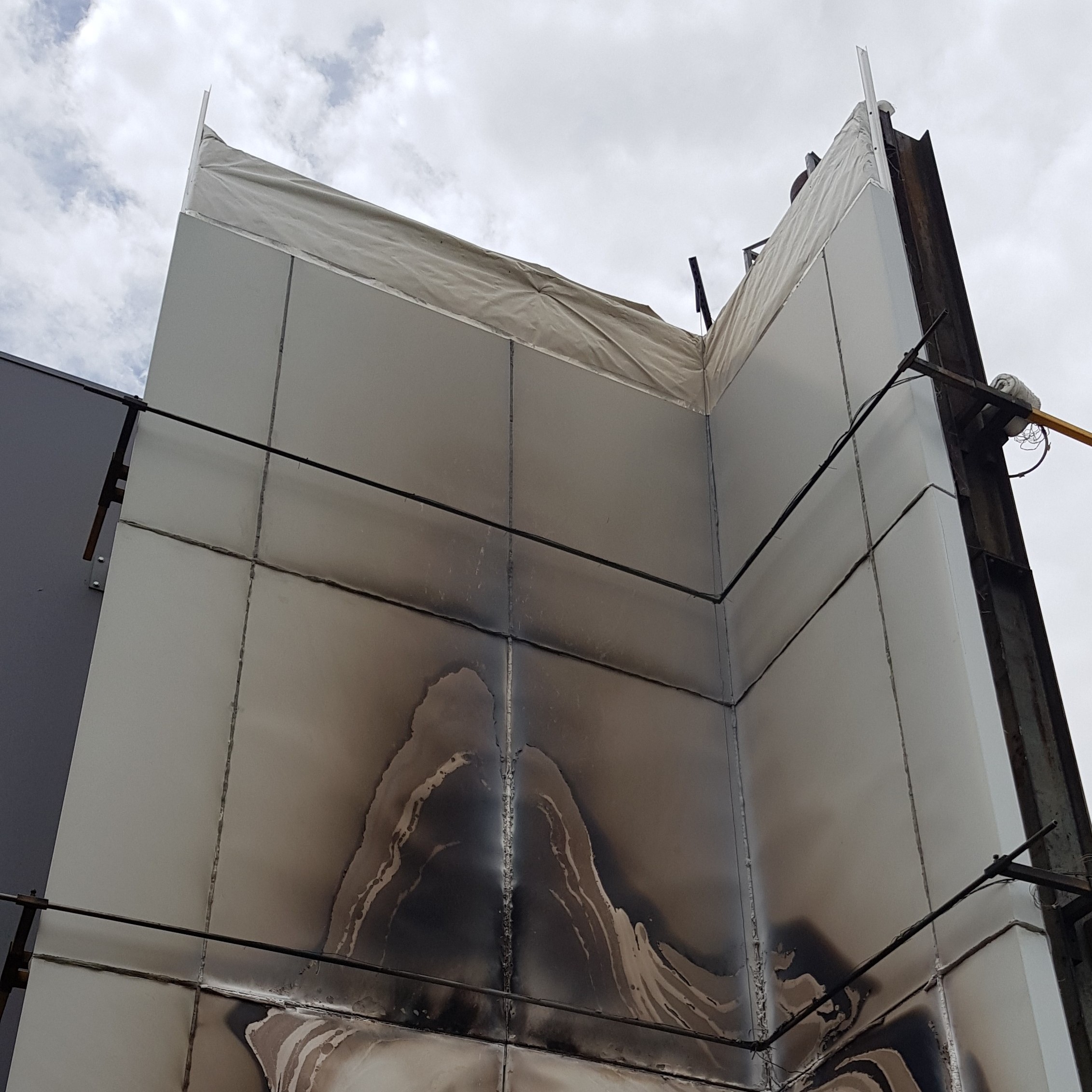

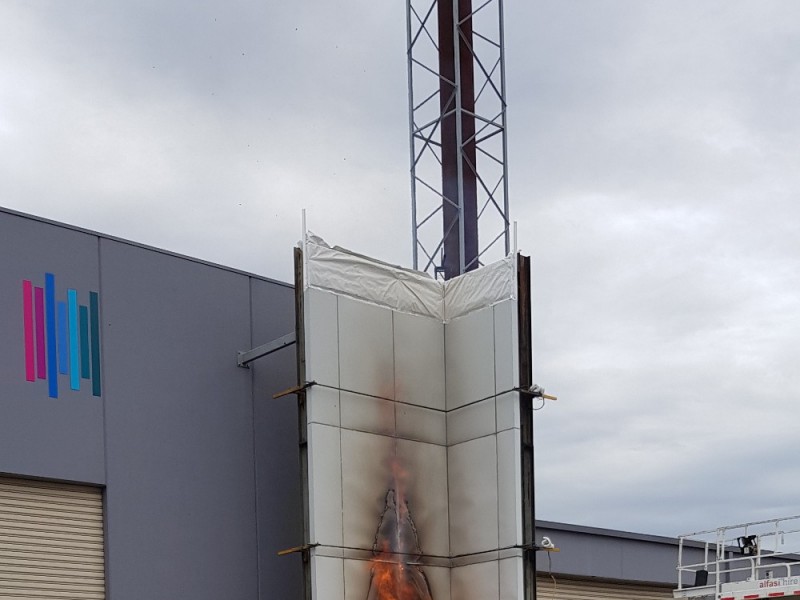

NATA Fire Testing

FIRESPAN membranes have been appropriately tested to relevant Australian standards including AS 1530.1, AS 1530.2 and AS 1530.3 by NATA accredited laboratories and are all Deemed-to-Satisfy non-combustible.


Easy to Use

FIRESPAN pliable membranes are all high strength and ultra flexible products easily adaptable for wrap-around areas and varied surface types therefore making them quick, cost-effective and easy to install.


Anti-tear Strength

With ultra heavy duty multi-layer construction, FIRESPAN pliable membranes are all able to withstand moderate wind and won’t tear of the building when under pressure in normal conditions.


High Durability

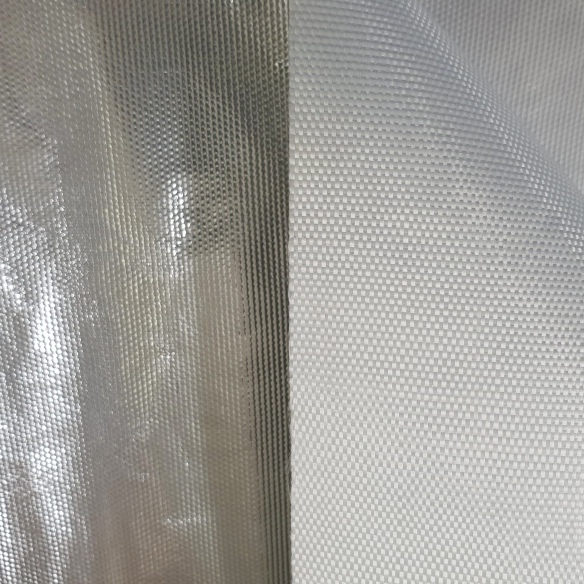

All variations of FIRESPAN membranes use multiple layers of either high-strength fibre-glass, pure aluminium foil or specialist textiles each offering excellent durability and resistance to delamination over time.


NCC 2022 Compliant

FIRESPAN pliable membranes have all been tested in accordance with relevant Australian fire standards in accordance with AS 4200.1 giving confidence to builders and contractors for suitability on all projects.


Water Resistant

The heavy duty facing material structure of FIRESPAN sarking and wall wrap means there is no moisture ingress or break-down ensuring superior long term performance.


Protects the Building

During construction FIRESPAN pliable membranes will help protect the building structure and insulation from the external elements helping to prevent the onset of any degredation or corrosion.




Availability

Product Range

FIRESPAN
Pliable Membranes
INSULTAPE
White High Tack Tape



Availability

Code

Description

Lead Time

MOQ

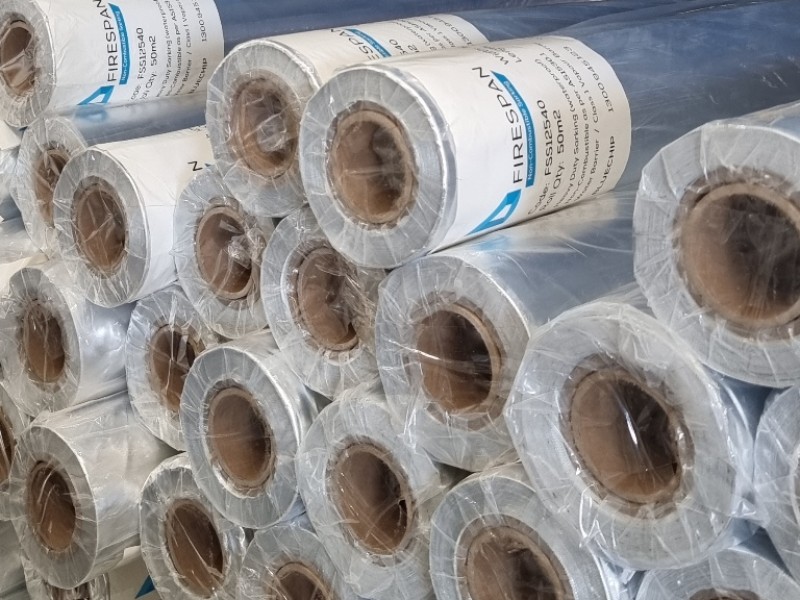

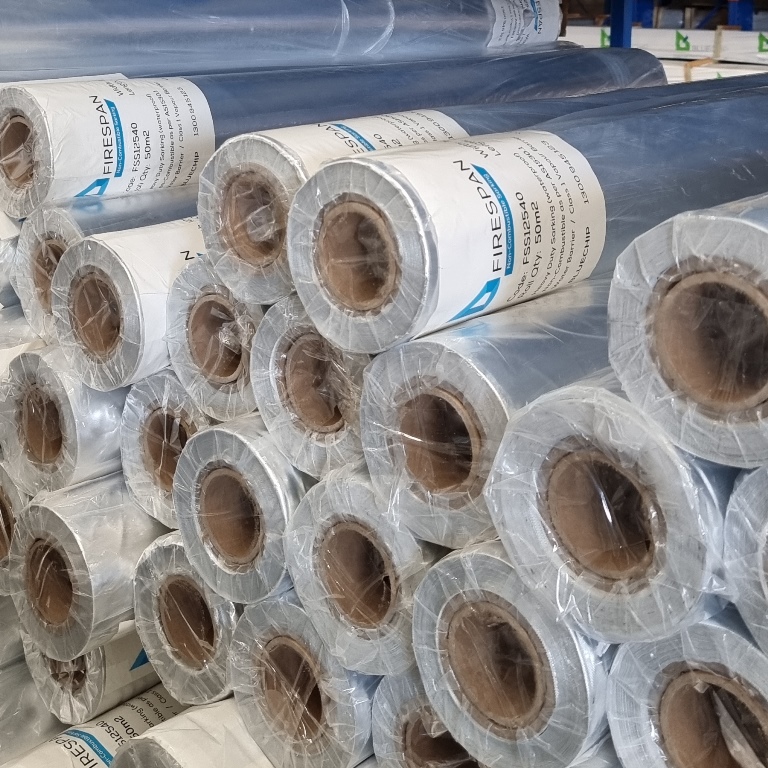

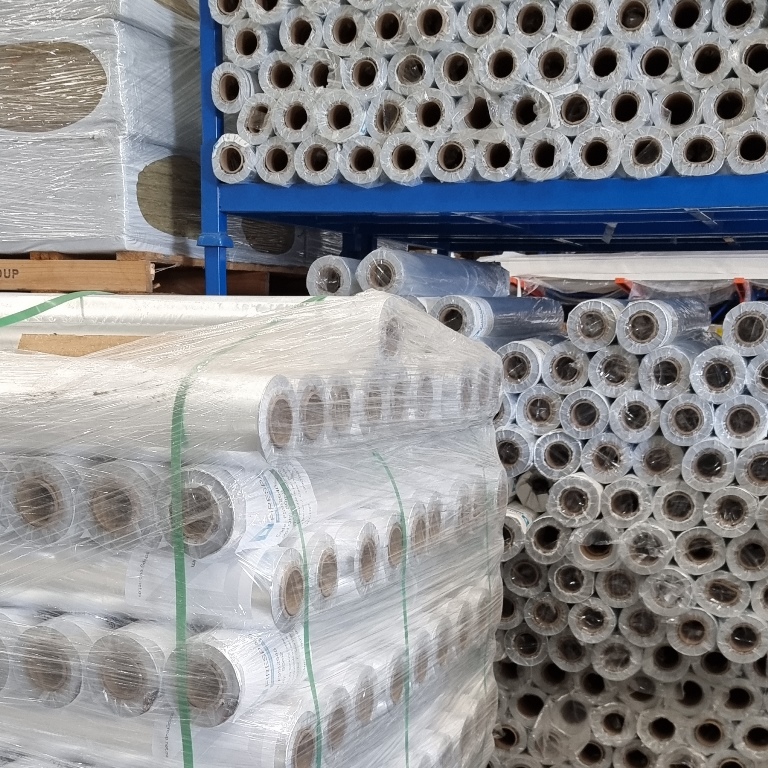

FSS12540 FIRESPAN FSS Vapour Barrier Membrane, 1.25 x 40m Roll Stock 1 Roll
FSB12540 FIRESPAN FSB Perforated Breather Membrane, 1.25 x 40m Roll Stock 1 Roll



Accessories

Code

Description

Lead Time

MOQ

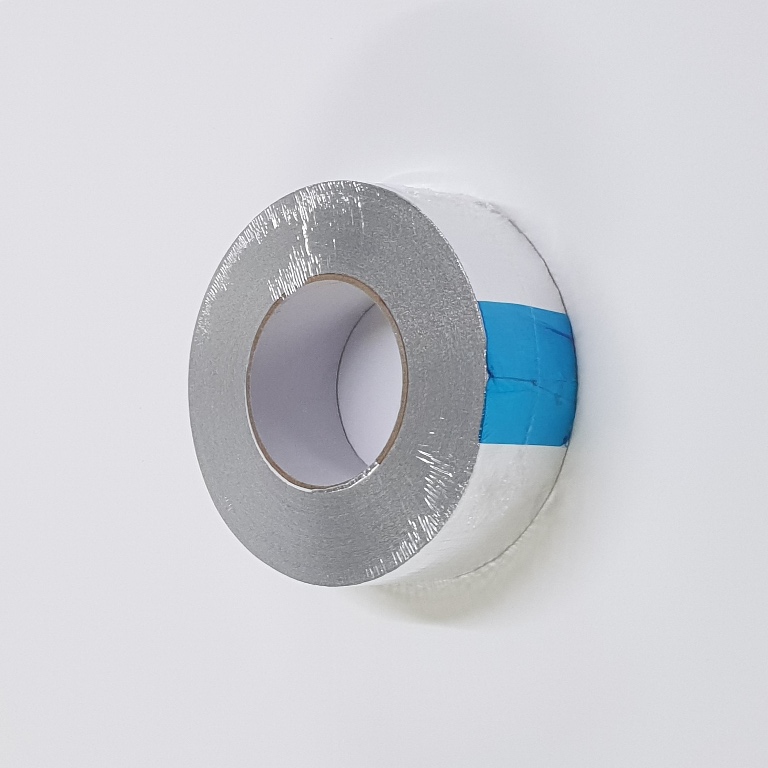

ITW4850 INSULTAPE 48mm White High Tack Tape, 50m Roll Stock 1 Roll



Technical Data

Test Item

Standard

Result

DTS Non-combustible C2D10(6)(g) Pass*
DTS Non-combustible C2D10(6)(f) Pass**
Flammability Index AS 1530.2 <5**
Ignitability Index AS 1530.3 0*
Spread of Flame Index AS 1530.3 0*
Heat Evolved Index AS 1530.3 0*
Smoke Developed Index AS 1530.3 1*
Strength / Duty AS 4200.1 Heavy Duty
Emittance AS 4201.5  0.05
Reflectivity Actual 95%
Water Barrier (FSS Only) AS 4201.4 Pass
Vapour Permeability (FSS) ASTM E96 Class 1
Vapour Permeability (FSB) ASTM E96 Class 3



*Deemed-to-Satisfy non-combustible in accordance with AS 1530.1 and AS 1530.3 testing as per the requirements of NCC 2022 clause C2D10(6)(g). **Deemed-to-Satisfy non-combustible as per NCC 2022 clause C2D10(6)(f), with thickness <1mm and Flammability Index <5.
