Overview

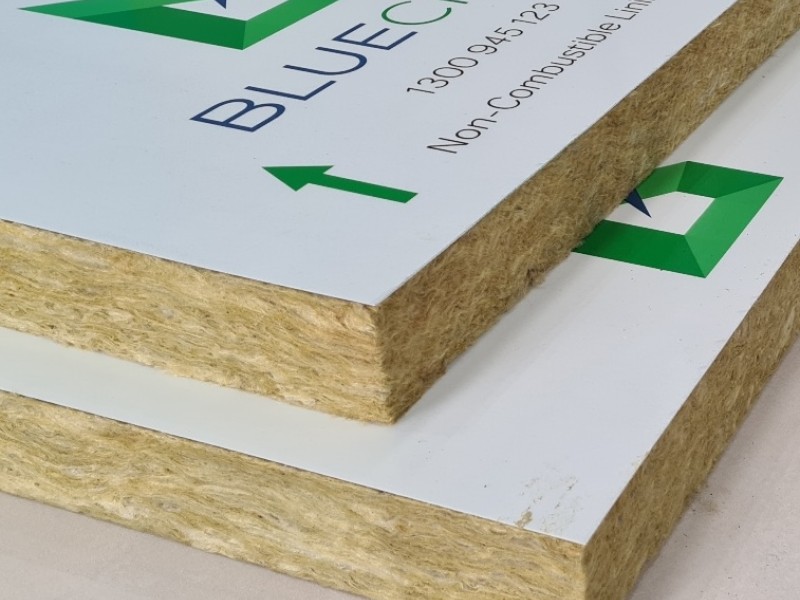

Non-combustible White Faced Insulation

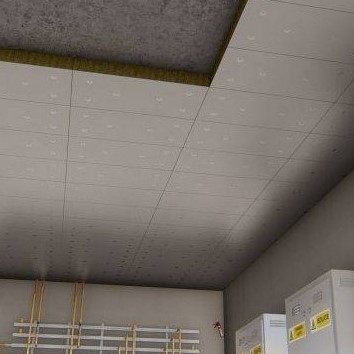

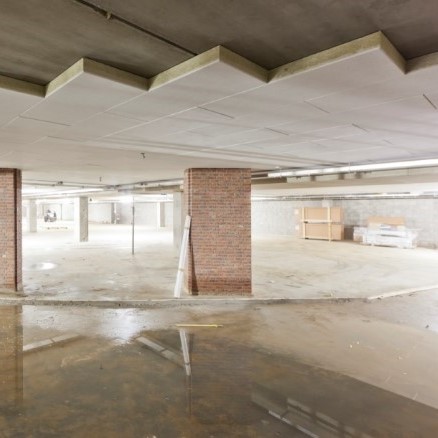

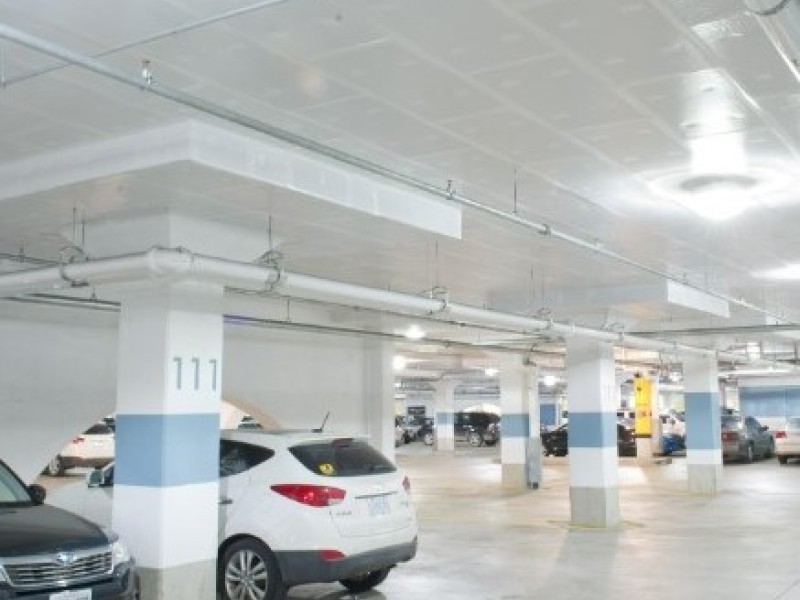

Non-combustible as per NCC 2022, Clause C2D10(6)(g), IROCK PLUS soffit insulation is a thermal and acoustic insulation material comprising of a rigid stonewool insulation board bonded to either a non-combustible FIRESPAN facer or a pure aluminium facer. Providing an attractive white finish and high-density 10 KN/m2 compressive strength, IROCK PLUS is the safe and responsible choice for all under-slab soffit applications such as car parks, high-rise apartments and health buildings. Compared to alternative materials, IROCK PLUS produces much less smoke in a fire scenario and has superior ageing performance


Non-combustible

IROCK PLUS is deemed non-combustible when tested to AS 1530.1 and AS 1530.3 in accordance with NCC 2022, Clause C2D10(6)(g) meaning it an be used wherever a non-combustible material is required.


Moisture Resistant

Although not suitable for permanent immersion or exposure to drenching, IROCK PLUS insulation board's thermal performance will not be adversely affected by condensation or contact with liquid water.


Excellent Acoustic Performance

Along with excellent fire safety and thermal performance, IROCK PLUS also provides an excellent acoustic performance of NRC >1.0 in accordance with ISO 354-2006, an ideal solution for plant-rooms.


Light-weight & Attractive

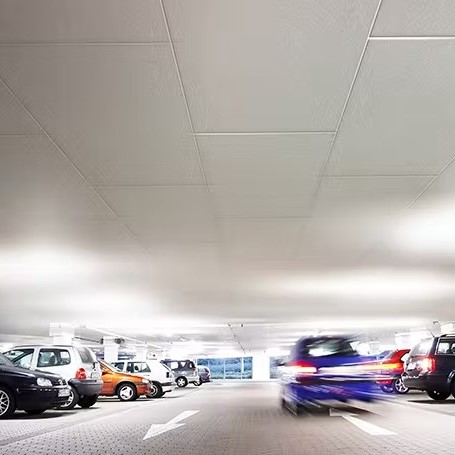

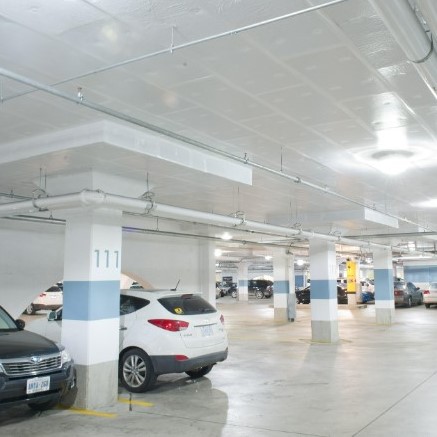

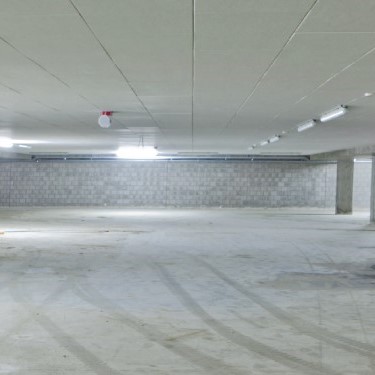

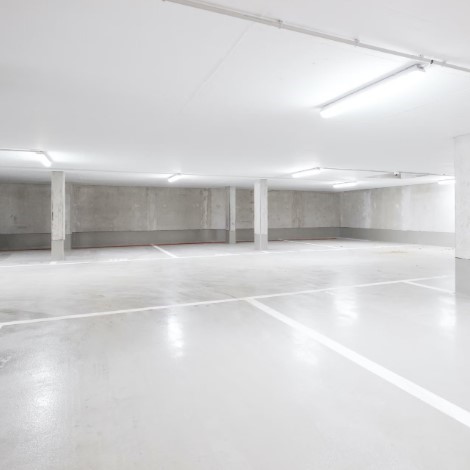

Not only are IROCK PLUS insulation boards very lightweight (only 100kg/m3), they also offer an attractive white finish ideal for exposed under-slab soffit applications such as shopping centre car-parks.


Cost-Effective

With a nominal thermal conductivity of 0.036 W/mK and a very economical price-point, IROCK PLUS offers excellent thermal efficiency for minimal upfront cost along with life-cycle energy savings for the building.


Environmentally Friendly

Largely manufactured from recycled materials and natural rock, IROCK PLUS is environmentally friendly as an initial product. It also offers numerous environmental benefits in application as thermal insulation.


NCC 2022 Compliant

NCC 2022 Clause C2D10 specifically requires all components of external walls including cladding, insulation and framing to be non-combustible and IROCK PLUS is one of only a few materials that meet this criteria.


Superior Ageing Performance

Unlike low density batts which tend to slump in vertical applications or PIR and phenolic insulation which lose thermal performance over time, IROCK PLUS is anti-slump and has excellent long-term ageing performance.




Availability

Product Range

IROCK PLUS
White* Soffit Insulation
ITW4850
White High Tack Tape



Irock Plus Availability

Code R-value

Description

Lead Time

MOQ

IRP401206 R1.11 IROCK PLUS 40mm White* Soffit Insulation, 1200 x 600mm 8-10 Weeks 8 Boards
IRP601206 R1.67 IROCK PLUS 60mm White* Soffit Insulation, 1200 x 600mm 8-10 Weeks 5 Boards
IRP801206 R2.22 IROCK PLUS 80mm White* Soffit Insulation, 1200 x 600mm 8-10 Weeks 4 Boards
IRD1001206 R2.78 IROCK PLUS 100mm White* Soffit Insulation, 1200 x 600mm 8-10 Weeks 5 Boards
IRD1201206 R3.33 IROCK PLUS 120mm White* Soffit Insulation, 1200 x 600mm 8-10 Weeks 5 Boards

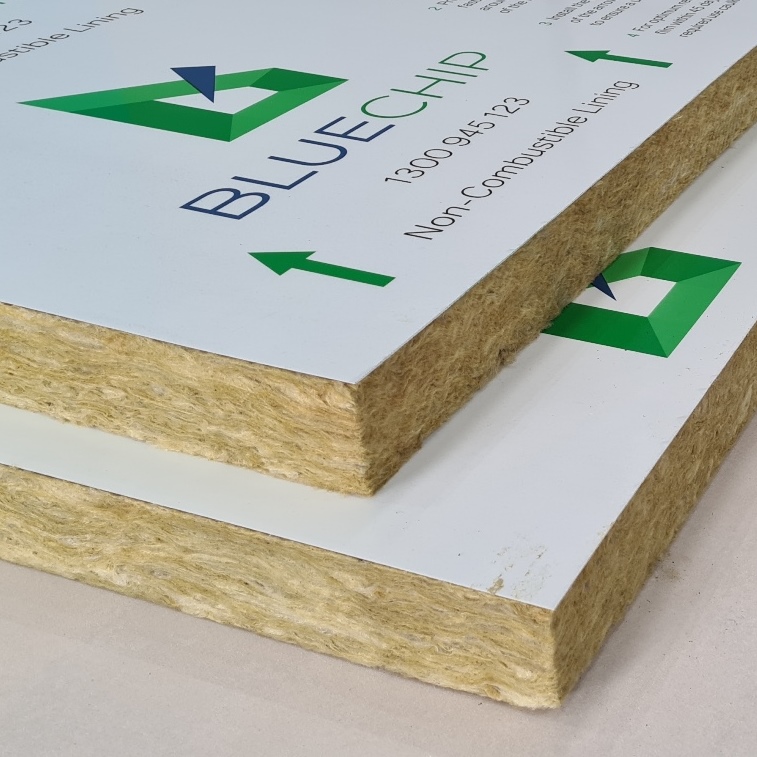

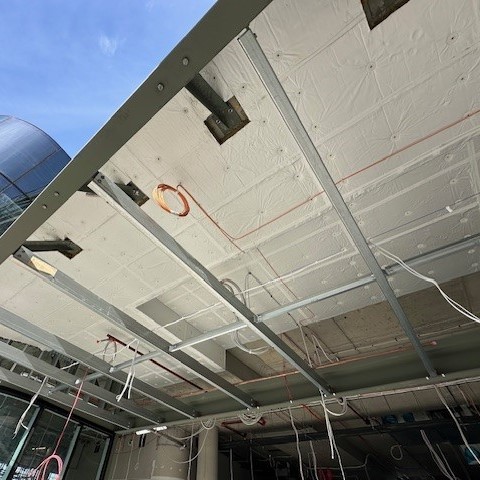

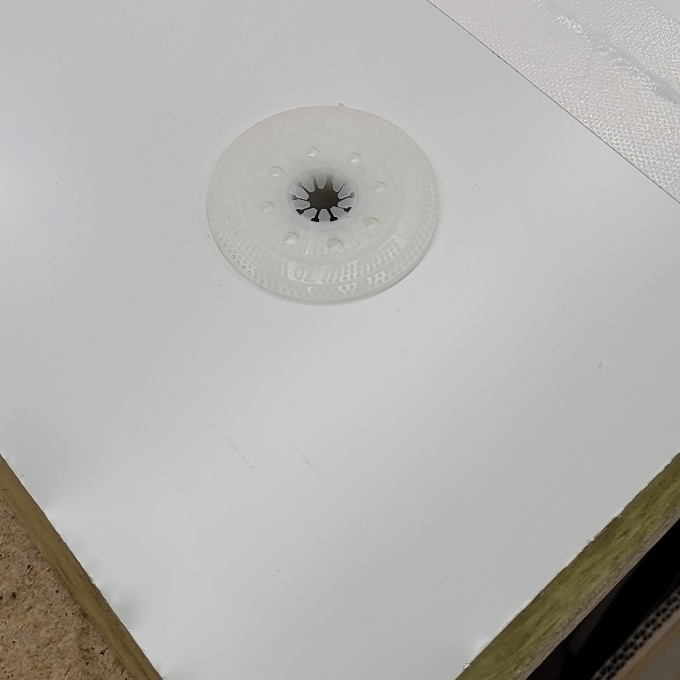

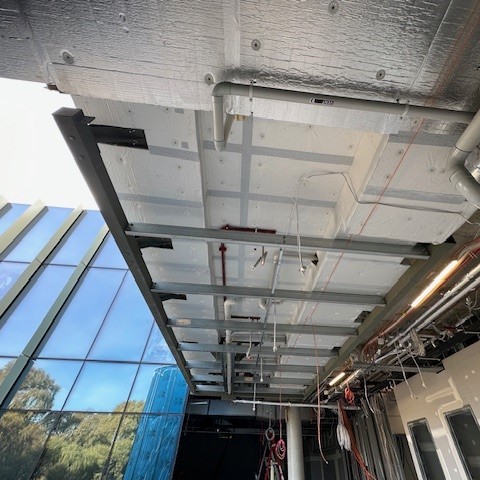

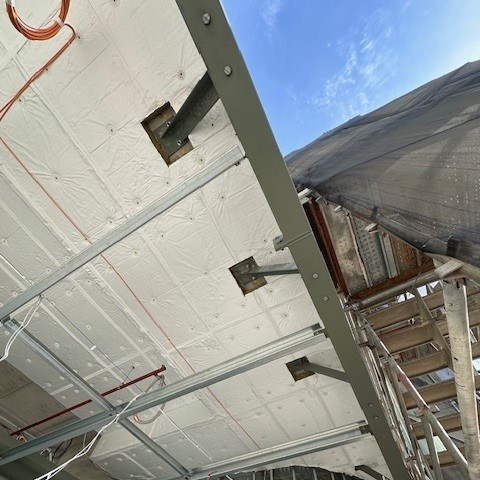

*Important Note: The standard IROCK PLUS facer is made from a fibre-glass fabric which forms a non-rigid white finish to the face of the insulation. It will not be perfectly smooth or flat and will indent at fixing points as per photos in the image gallery. If a smoother, more uniform finish is preferred we can also supply IROCK PLUS with a white 0.5mm thick pure aluminium facer which offers much superior aesthetics. For more information call 1300 945 123 or email This email address is being protected from spambots. You need JavaScript enabled to view it.



Accessories

Code

Description

Lead Time

MOQ

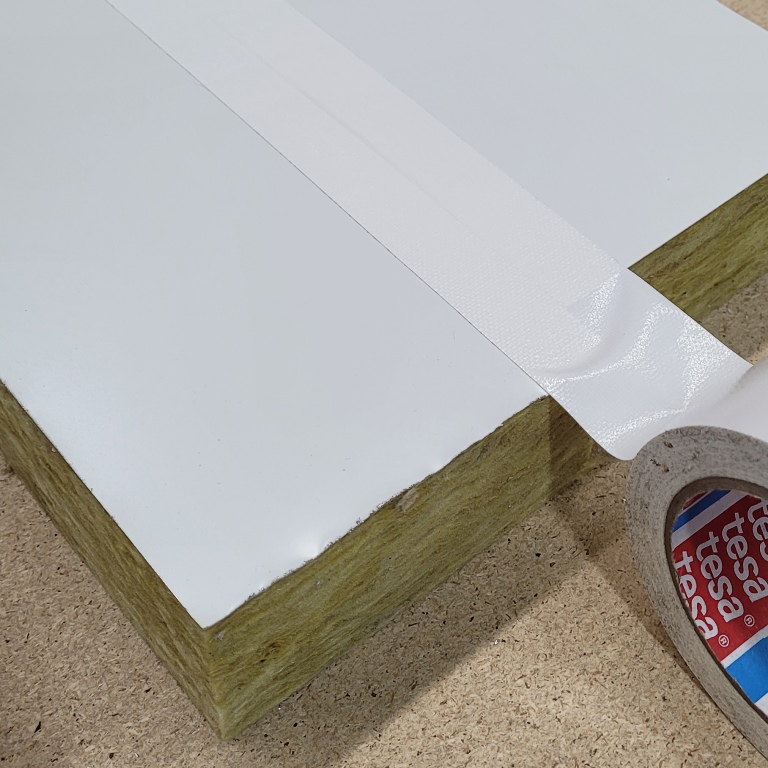

ITW4850 TESA 48mm White High Tack Tape, 50m Roll Stock 1 Roll



Irock Plus Technical Data

Test Item

Standard

Result
Thermal Conductivity ASTM C518 0.036 W/mK
Acoustic Performance ISO 354-2006 1.0 NRC
Non-combustible AS 1530.1 Pass**
DTS Non-combustible C2D10(6)(g) Pass**
Group Fire Rating AS 5637.1 1***
Average Specific Extinction AS 5637.1 <250 m2/kg***
Spread of Flame Index AS 1530.3 0**
Smoke Developed Index AS 1530.3 0-1**
Facer DTS Non-combustibility C2D10(6)(f) Pass
Facer Flammability Index AS 1530.2 <5
Material Density Actual 100 kg/m3
Maximum Service Temperature Actual >850°C
Melting Temperature Actual >1000°C
Water Absorption EN 1609 <1.1%



**IROCK PLUS, is deemed-to satisfy non-combustible when tested to AS 1530.1 and AS 1530.3 in accordance with NCC 2022 Clause C2D10(6)(g) requirements meaning it can be used in all external walls and facade applications. ***IROCK base insulation board, achieves a Group 1 rating and an average specific extinction of <250 m2/kg when tested as per AS 5637.1 meaning it can be used in all internal wall and lining applications when combined with a deemed-to-satisfy non-combustible facer.
