Overview

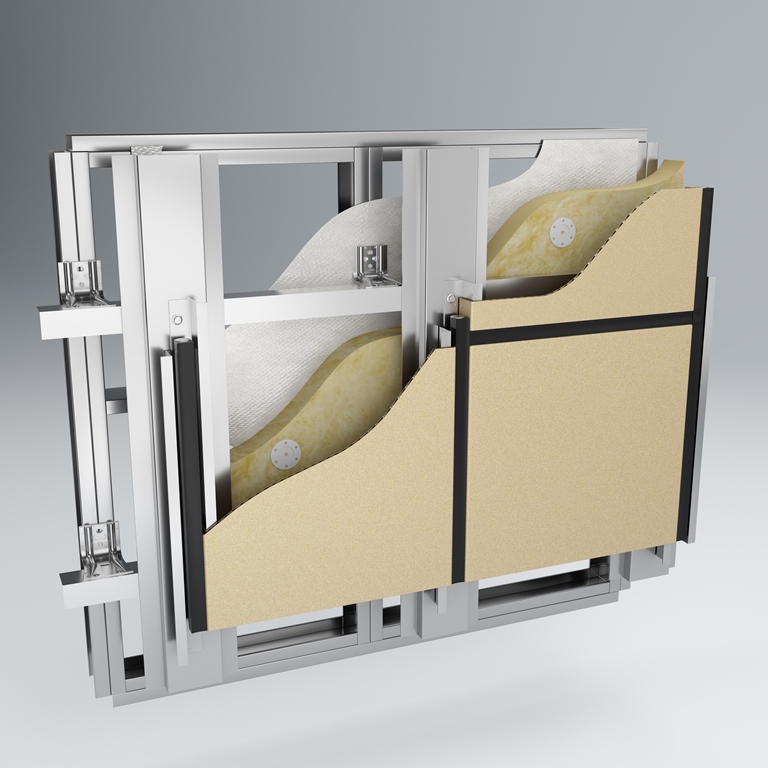

Ventilated Facade System

The BICEP ventilated facade system includes brackets, rails and secret fixing options offering exceptional versatility in both vertical and horizontal configuration. Available in Steel (FE), Aluminium (AL) and Stainless Steel (SS) for different applications, the BICEP facade system provides excellent usability and unrivaled structural strenth resulting in a cost-effective ventilated facade system ideal for suspending all cladding types. An added benefit is that the BICEP brackets are thermally broken and supplied in conjunction with IROCK insulation and ULTRAPERM membrane for a fully intergrated solution.


Non-combustible

Made wholly of steel (FE), aluminium (AL) or stainless steel (SS) the BICEP ventilated facade system is Deemed-to-Satisfy non-combustible in accordance with NCC 2022, Clauses C2D10(4)(f)(ii) & C2D10(5).


A Complete System

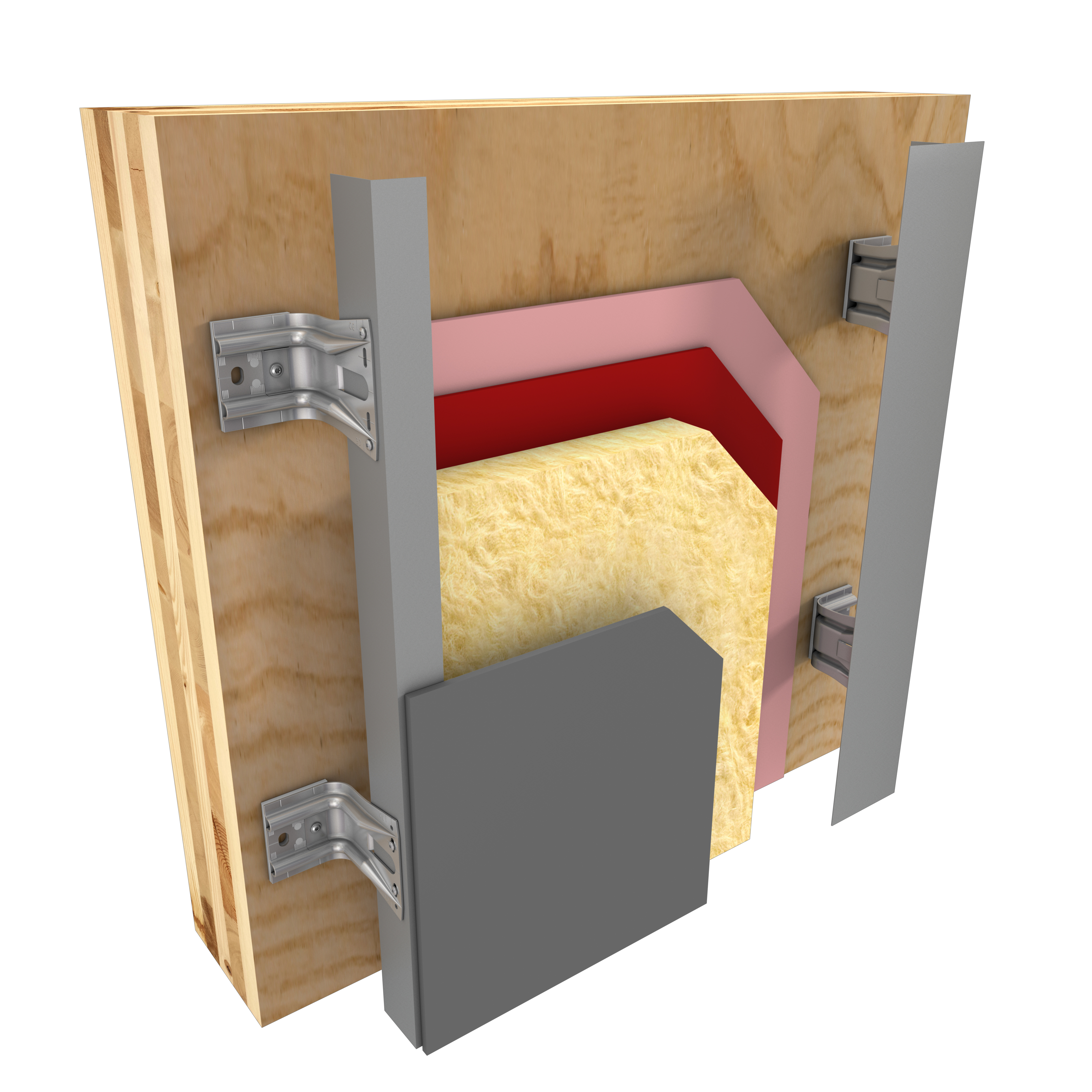

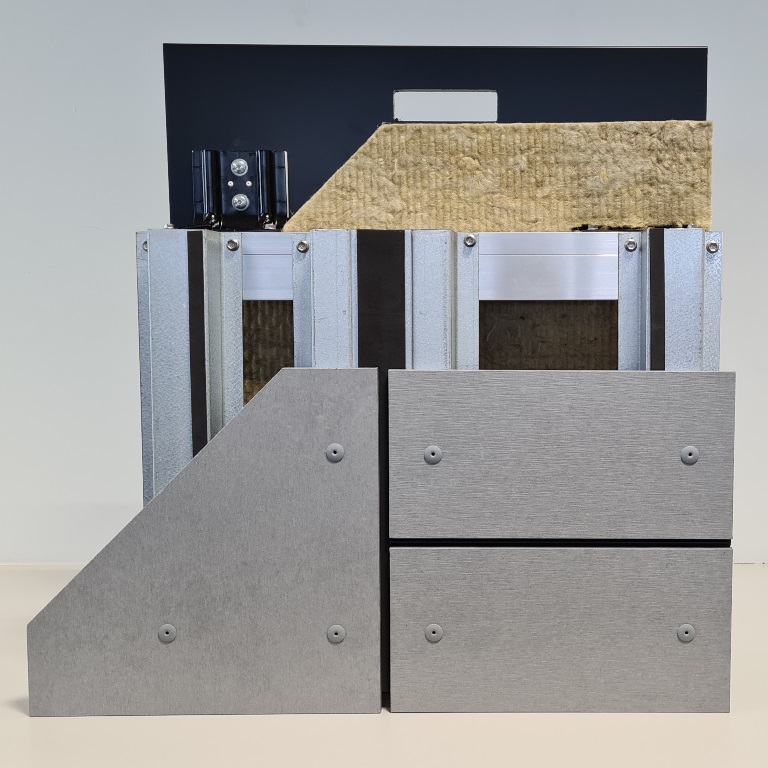

The BICEP Ventilated Facade System has been designed as a complete solution which along with IROCK insulation and ULTRAPERM membrane, provides a complete system achieving the required structural, thermal and weatherproofing outcomes.


All Cladding Types

As one of Australia's largest architectural cladding suppliers, we are in the ideal position to design a compliant ventilated facade system that suits all different possible cladding types and applications. BICEP is this system.


Unrivalled Versatility

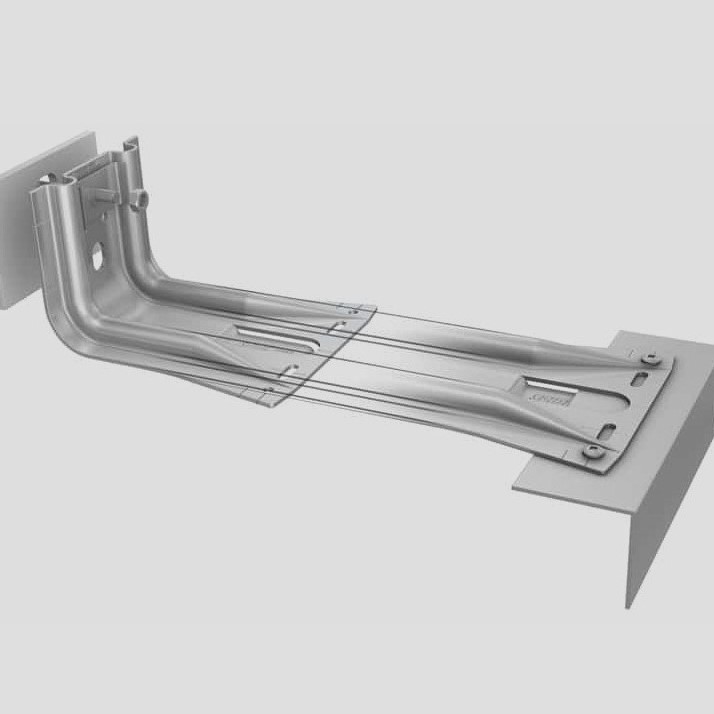

With excellent ease of use in both vertical and horizontal configuration and bracket sizes from 70mm up to 900mm, BICEP is also available in steel (FE), aluminium (AL) and stainless steel (SS) for unrivalled versatility.


Engineering Support

The BICEP ventilated facade system is supported by proprietary structural engineering software to assist in the design and specification of facades in all applications and locations with all different loads as required.


From the Structure Out

Our company slogan; from the structure out, we've got it covered! The BICEP system along with STUDTEK, IROCK, ULTRAPERM and our wide range of cladding materials means you can specify the entire facade from one local supplier.

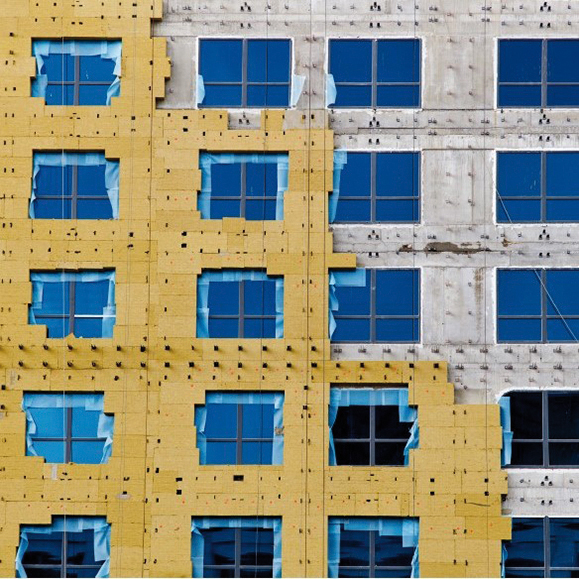

Ventilation Benefits

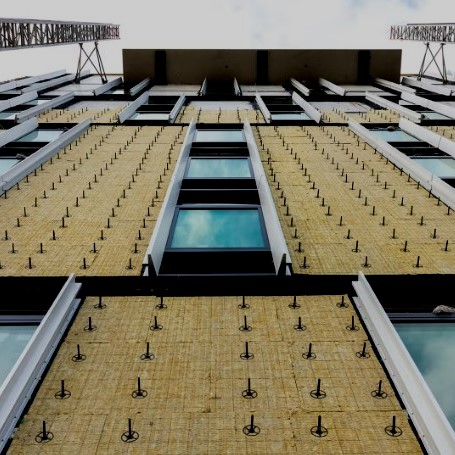

Used in Europe and the Americas for many years, ventilated facade systems like BICEP offer many benefits and advantages over traditional sealed facades - superior energy efficiency, weatherproofing and building durabilty.


Excellent Value

The incredible strength of the patented BICEP bracket design (meaning less are required) along with manufacturer to industry direct supply chain means the BICEP system can offer exceptional value-for-money to building owners.




Availability

Product Range

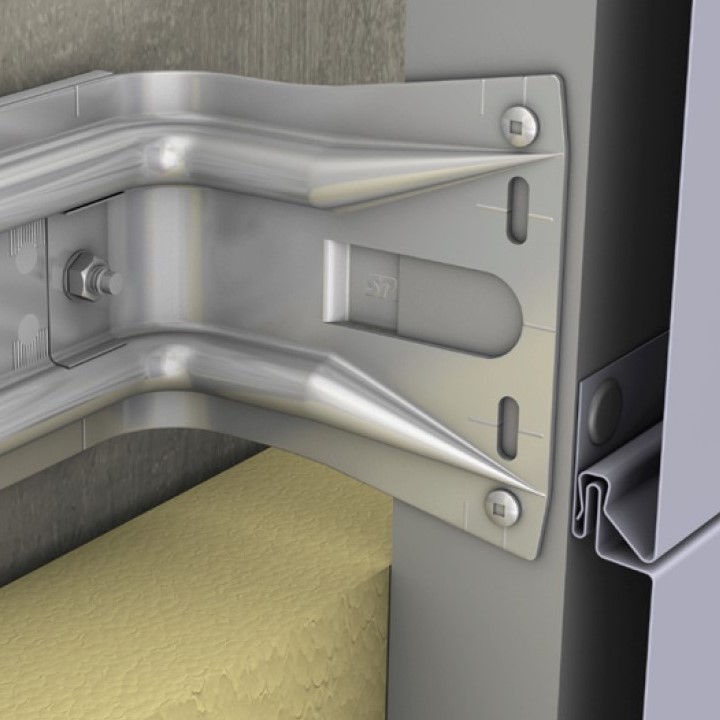

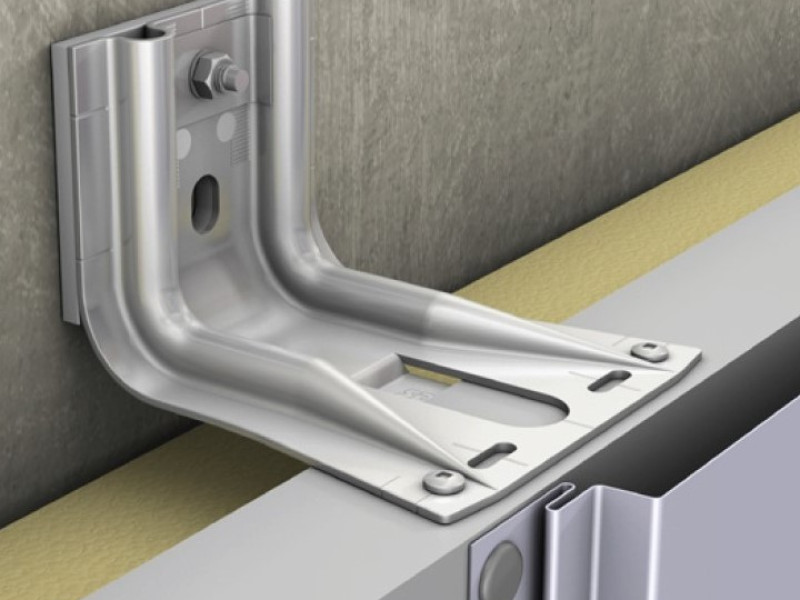

BICEP BRACKET +
Horizontal System

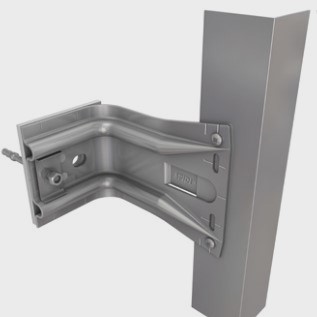

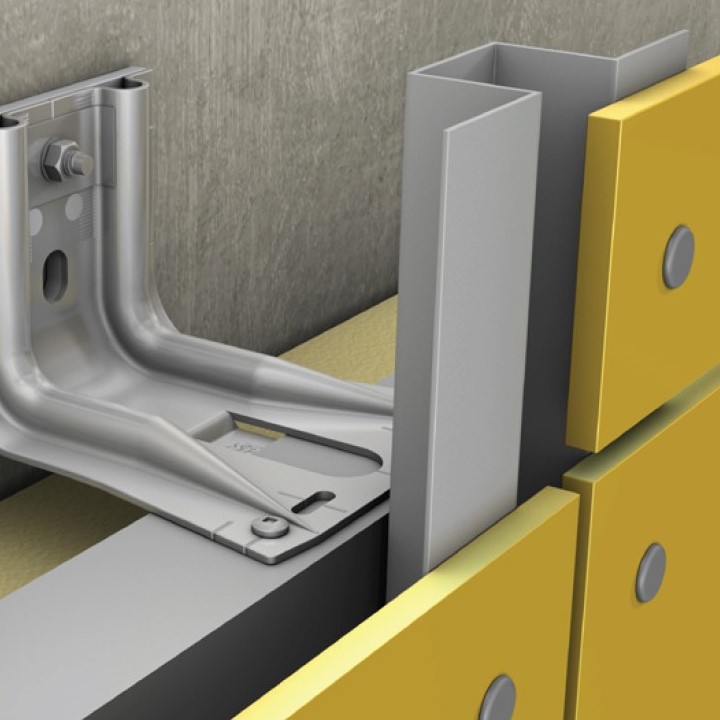

BICEP BRACKET +

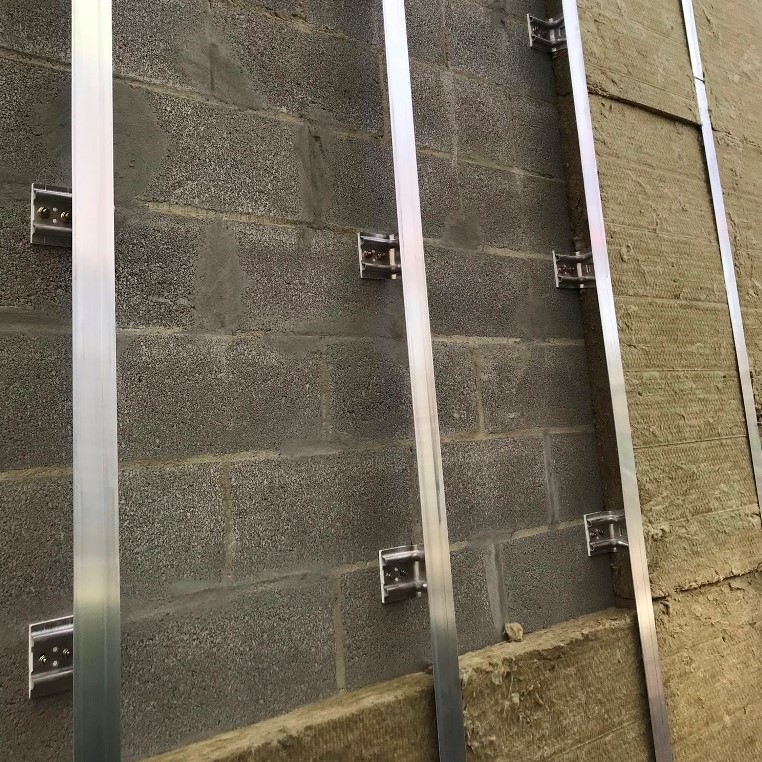

Vertical System

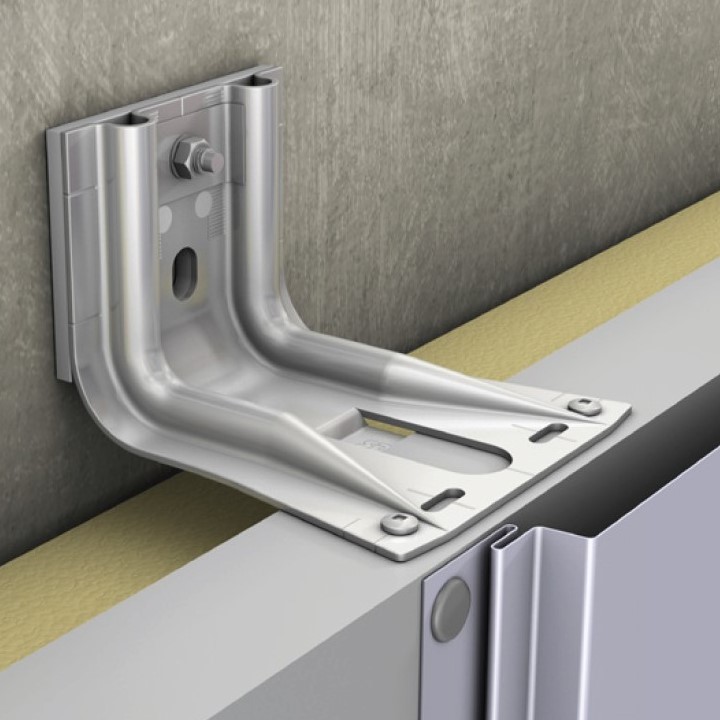

BICEP HORIZONTAL +
Visible-fix System

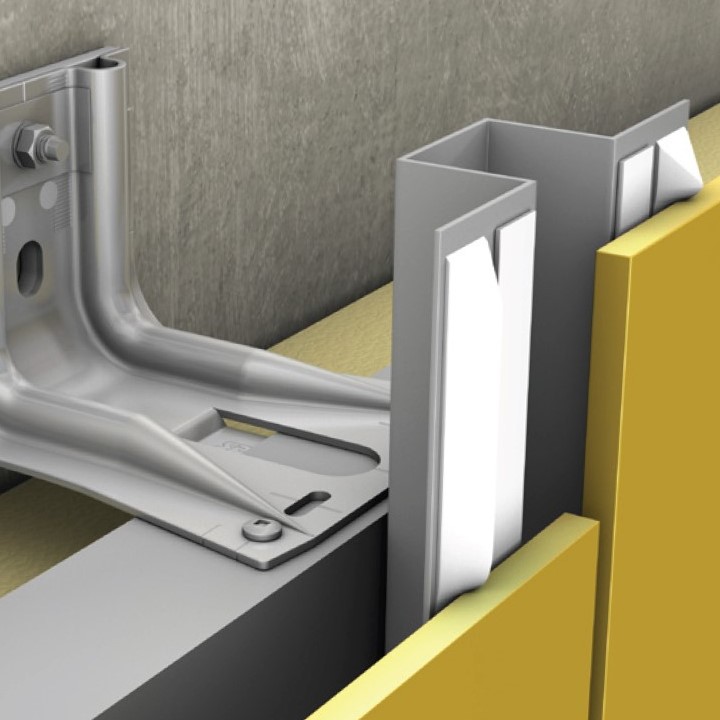

BICEP VERTICAL +
Hanging System

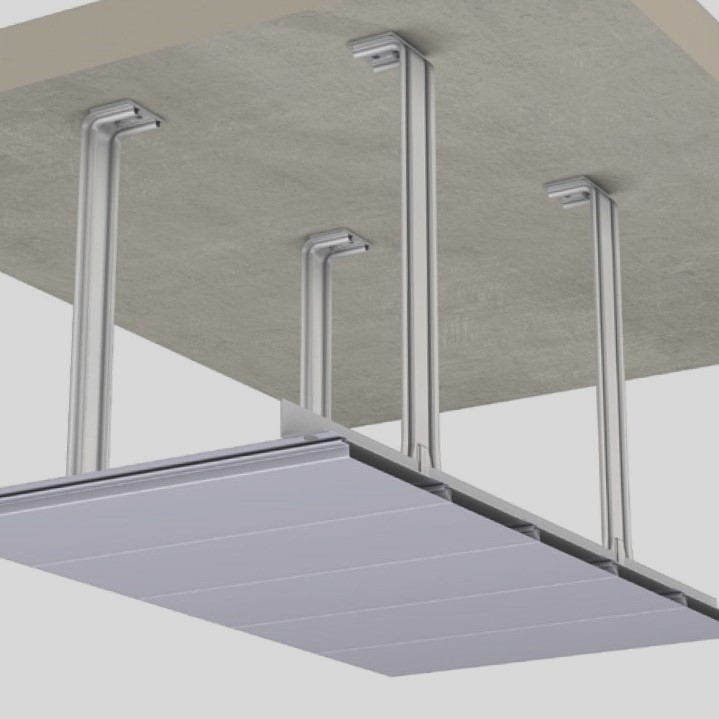

BICEP BRACKET +
Ceiling Application

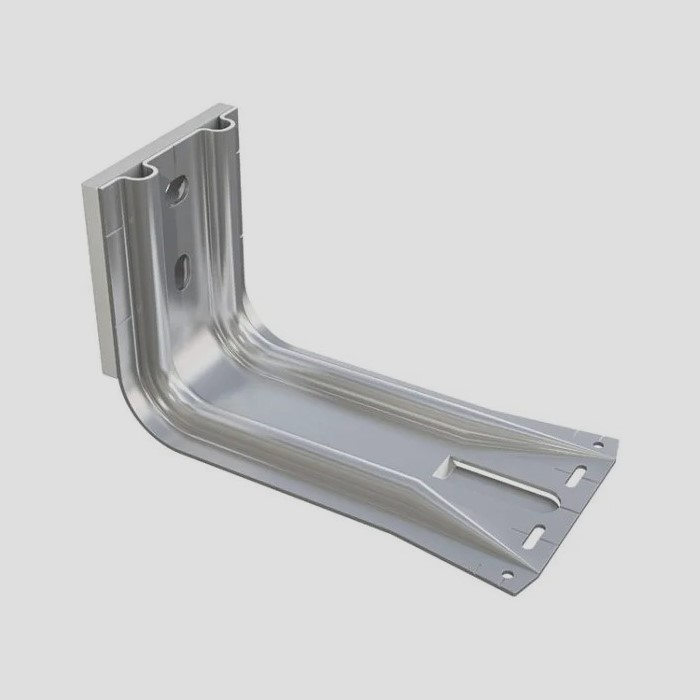

Bicep Aluminium Facade Brackets

Code

Description

Lead Time

MOQ

BCBA40 BICEP 40mm Aluminium Bracket & Thermal Break 3-4 Weeks 100 Brackets
BCBA65 BICEP 65mm Aluminium Bracket & Thermal Break Stock 1 Bracket
BCBA85 BICEP 85mm Aluminium Bracket & Thermal Break Stock 1 Bracket
BCBA110 BICEP 110mm Aluminium Bracket & Thermal Break 3-4 Weeks 75 Brackets
BCBA135 BICEP 135mm Aluminium Bracket & Thermal Break 3-4 Weeks 50 Brackets
BCBA*** BICEP 135 - 900mm Aluminium Bracket & Thermal Break 3-4 Weeks 50 Brackets
BCPP100 BICEP Universal Pressure Plate with 9mm Hole, 100 Pack Stock 1 Pack



Bicep Steel Facade Brackets

Code

Description

Lead Time

MOQ

BCBM65 BICEP 65mm Metal Bracket & Thermal Break 3-4 Weeks 85 Brackets
BCBM85 BICEP 85mm Metal Bracket & Thermal Break 3-4 Weeks 75 Brackets
BCBM110 BICEP 110mm Metal Bracket & Thermal Break 3-4 Weeks 75 Brackets
BCBM135 BICEP 135mm Metal Bracket & Thermal Break 3-4 Weeks 50 Brackets
BCBM*** BICEP 135 - 900mm Metal Bracket & Thermal Break 3-4 Weeks 50 Brackets
BCPP100 BICEP Universal Pressure Plate with 9mm Hole, 100 Pack Stock 1 Pack



Bicep Stainless Steel Facade Brackets

Code

Description

Lead Time

MOQ

BCBS65 BICEP 65mm Stainless Bracket & Thermal Break 3-4 Weeks 85 Brackets
BCBS85 BICEP 85mm Stainless Bracket & Thermal Break 3-4 Weeks 75 Brackets
BCBS110 BICEP 110mm Stainless Bracket & Thermal Break 3-4 Weeks 75 Brackets
BCBS135 BICEP 135mm Stainless Bracket & Thermal Break 3-4 Weeks 50 Brackets
BCBS*** BICEP 135 - 600mm Stainless Bracket & Thermal Break 3-4 Weeks 50 Brackets
BCPP100 BICEP Universal Pressure Plate with 9mm Hole, 100 Pack Stock 1 Pack



Bicep Aluminium Facade Profiles

Code

Description

Lead Time

MOQ

BCL6060 BICEP 40 x 60mm Aluminium L-Rail, 6.0m Length Stock 1 Length
BCT4060 BICEP 40 x 100mm Aluminium T-Rail, 6.0m Length Stock 1 Length
BCT6060 BICEP 60 x 100mm Aluminium T-Rail, 6.0m Length Stock 1 Length
BC1202560 BICEP 120 x 25mm Aluminium Top-hat, 6.0m Length 6-8 Weeks 50 Lengths

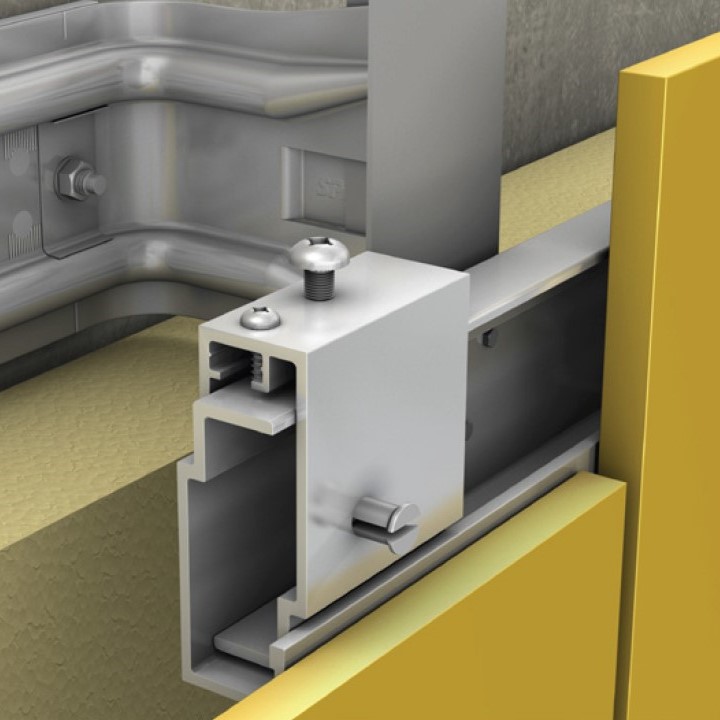

Bicep Aluminium Concealed Fix Carrier Rail & Hanger System

BCALCR60
Carrier Rail
BCAL*H100
Hanger



Code

Description

Lead Time

MOQ

BCCFR30 BICEP Concealed Fix Rail, 3.0m Length 3-4 Weeks 50 Lengths
BCCFR60 BICEP Concealed Fix Rail, 6.0m Length 10-12 Weeks 50 Lengths
BCCFH BICEP Concealed Fix Hanger 3-4 Weeks 1 Pack
BCCFHA BICEP Concealed Fix Hanger with Adjustment 3-4 Weeks 1 Pack
BCCFHAS BICEP Concealed Fix Hanger Adjustment Screw 3-4 Weeks 1 Pack



System Components

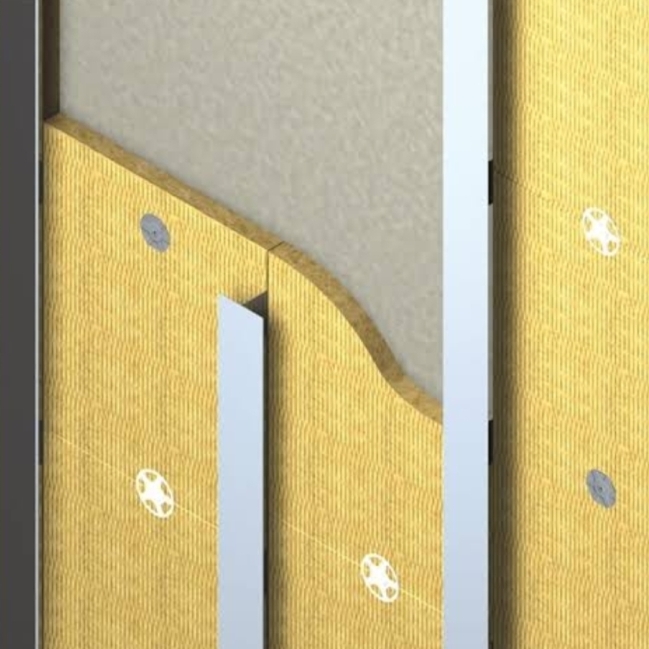

IROCK
AS 1530.1 Insulation
ULTRAPERM
Class 4 Membrane
STUDTEK
Steel Top-hats

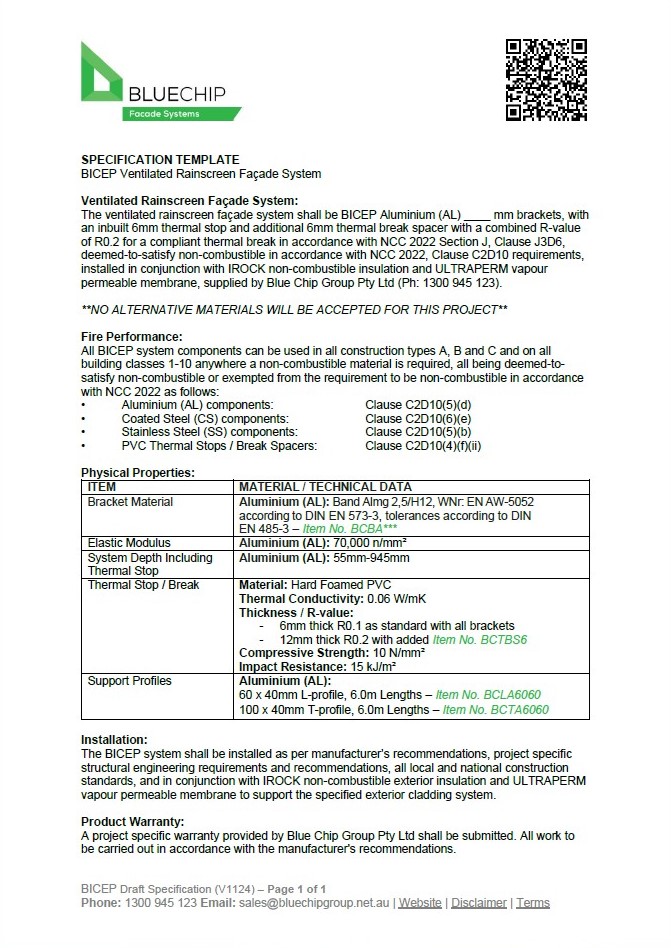

Downloads
