Overview

Through-colour Fibre Cement Panel

EQUITONE is a through-coloured fibre cement cladding designed by and for architects. Every EQUITONE panel is unique, showing the raw, untreated texture of the fibre cement base material. Fibre cement is a cement composite material that consists of cement, cellulose and mineral materials, reinforced by a visible matrix. Nothing else. Visible and invisible fixing methods include riveting, screwing and bonding on metal or wood supporting frames. No matter what design options you explore, the through-coloured nature of EQUITONE assures crisp, monolithic details in a wide range of unique finishes.


Through-Colour Material

EQUITONE through-colour fibre cement cladding offers elegant shades of natural colour. Every EQUITONE panel is unique, showing the raw, untreated texture of the fibre cement base material.


Easy to Cut & Install

EQUITONE through-colour fibre cement cladding is easily cut to size and installed onsite minimising lengthy lead times between site measure, production and delivery of pre-finished panels.


Repels Water

EQUITONE cladding receives a hydrophobation process which prevents moisture ingress into the core of the panel. This allows the completely raw panel to be exposed to the elements without any treatment.


High Durability

EQUITONE through-colour fibre cement cladding is an exceptionally durable panel. Even in the most demanding applications EQUITONE has a life expectancy exceeding 50 years.


Non-combustible

EQUITONE through-colour fibre cement cladding is a non-combustible facade material that can be used internally or externally wherever a non-combustible material is required.


Local Stock Available

EQUITONE through-colour fibre cement cladding is readily available with over 10 colours in stock Australia wide. Please contact us to confirm the stock range and current available sheet sizes.


Maintenance Free

EQUITONE through-colour fibre cement cladding is a truly maintenance free material with no re-sealing, painting or ongoing maintenance ever required during install or anytime thereafter.


Ventilated System

EQUITONE cladding is installed on a ventilated sub-construction system allowing for the building envelope to breathe which increases thermal and energy efficiency and promotes healthier buildings.




Availability

Product Range

EQUITONE

Tectiva Finish

EQUITONE

Natura Finish

EQUITONE

Lines Finish

EQUITONE

Lunara Finish

EQUITONE

Pictura Finish



Availability

Description

Sheet Sizes

Lead Time

MOQ

EQUITONE Tectiva TE90, TE10, TE20

2500, 3050 x 1220mm

Stock

1 Sheet

EQUITONE Tectiva TE00, TE15, TE60

2500, 3050 x 1220mm

2-3 Weeks

1 Sheet

EQUITONE Tectiva TE30, TE40

2500, 3050 x 1220mm

14-16 Weeks

40 Sheets

EQUITONE Natura N154, N161, N991,
N593, N412, N252, N250, N251, N074

2500, 3100 x 1250mm

2-3 Weeks 1 Sheet
EQUITONE Natura All Other Colours 2500, 3100 x 1250mm 14-16 Weeks 30 Sheets
EQUITONE Lines 2500, 3050 x 1220mm 2-3 Weeks 1 Sheet
EQUITONE Lunara 2500, 3050 x 1220mm 14-16 Weeks 30 Sheets
EQUITONE Pictura 2500, 3100 x 1250mm 14-16 Weeks 30 Sheets



Accessories

Code

Description

Lead Time

MOQ

EQUR*** EQUITONE Uni Rivet (Insert Colour), 250 Pack Stock 1 Pack
EQUFPS EQUITONE Uni Rivet Fixed Point Sleeve, 100 Pack Stock 1 Pack
EQUTS*** EQUITONE Uni Timber Screw (Insert Colour), 250 Pack 3-4 Weeks 1 Pack
EQUSS EQUITONE Uni Screw Sleeve, 250 Pack 3-4 Weeks 1 Pack
EQLUK10 LUKO 1 Litre Edge Sealer (Natura Only) Stock 1 Can



Specialist Tools

EQCB
Diamond Saw Blade
EQDB7/11
7mm/11mm Drill Bit
EQLDT
11mm Lines Drill Bit
EQUCT
Centralising Tool
EQLAK
Luko Applicator Kit



Code

Description

Lead Time

MOQ

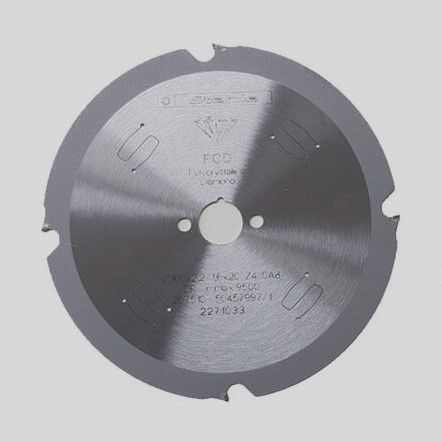

EQCB EQUITONE 160mm Cutting Blade Stock 1 Blade
EQDB11 EQUITONE 11mm Rivet Fix Drill Bit Stock 1 Bit
EQLDT EQUITONE 11mm Lines Drill-mill Tool Stock 1 Bit
EQDB7 EQUITONE 7mm Screw Fix Drill Bit Stock 1 Bit
EQDB4 EQUITONE 4.1mm Replacement Bit (To Suit EQUCT) Stock 1 Bit
EQUCT EQUITONE Uni Rivet Centralising Tool Stock 1 Tool
EQUNP EQUITONE Uni Rivet Protection Nose Piece Stock 1 Piece
EQLAK LUKO Applicator Kit (To Suit Edge Sealant) Stock 1 Kit



System Components

BICEP
Facade System
IROCK
AS 1530.1 Insulation
ULTRAPERM
Class 4 Membrane
STUDTEK
Steel Top-hats
PROLASTIK
Joint Sealant



Colour Chart

TE90 White
TE90 White
TE00 Calico
TE00 Calico
TE10 Natural
TE10 Natural
TE60 Hessian
TE60 Hessian
TE15 Concrete
TE15 Concrete
TE20 Raw Grey
TE20 Raw Grey
TE30 Sandstorm
TE30 Sandstorm
TE40 Sahara
TE40 Sahara
TE85 Graphite
TE85 Graphite
N164 White
N164 White
N162 Chalk Grey
N162 Chalk Grey
N154 Cream White
N154 Cream White
N861 Tawny Hue
N861 Tawny Hue
N961 Ecru
N961 Ecru
N161 Pale Mist
N161 Pale Mist
N163 Soft Grey
N163 Soft Grey
N211 Classic Grey
N211 Classic Grey
N252 Ash Grey
N252 Ash Grey
N891 Beach Stone
N891 Beach Stone
N892 Fossil Grey
N892 Fossil Grey
N250 Natural Grey
N250 Natural Grey
N294 Portland
N294 Portland
N281 Nimbus
N281 Nimbus
N251 Anthracite
N251 Anthracite
N073 Charcoal
N073 Charcoal
N074 Obsidian
N074 Obsidian
N661 Muted Yellow
N661 Muted Yellow
N662 Summer Haze
N662 Summer Haze
N593 Green Mist
N593 Green Mist
N594 Jadeite Green
N594 Jadeite Green
N411 Sea Mist
N411 Sea Mist
N412 Blue Grey
N412 Blue Grey
N991 Autumn Dusk
N991 Autumn Dusk
N972 Sepia
N972 Sepia
N331 Agate Red
N331 Agate Red
N359 Ruby
N359 Ruby
LT00 Cream White
LT00 Cream White
LT10 Beige
LT10 Beige
LT15 Light Grey
LT15 Light Grey
LT20 Raw Grey
LT20 Raw Grey
LT30 Ochre Yellow
LT30 Ochre Yellow
LT40 Red
LT40 Red
LT60 Hessian
LT60 Hessian
LT90 White
LT90 White
LA60 Hessian
LA60 Hessian
LA20 Raw Grey
LA20 Raw Grey
PW141 Porcelain
PW141 Porcelain
PW841 Parchment
PW841 Parchment
PG843 Fawn Grey
PG843 Fawn Grey
PG243 Moonstone
PG243 Moonstone
PG241 Gunmetal Grey
PG241 Gunmetal Grey
PG844 Mocha
PG844 Mocha
PA944 Espresso
PA944 Espresso
PA041 Matt Black
PA041 Matt Black
PG542 Olive
PG542 Olive
PG642 Antique Yellow
PG642 Antique Yellow
PG641 Powder Yellow
PG641 Powder Yellow
PG742 Pale Orange
PG742 Pale Orange
PG341 Volcanic Red
PG341 Volcanic Red
PG342 Deep Purple
PG342 Deep Purple
PG444 Navy Blue
PG444 Navy Blue
PG443 Regency Blue
PG443 Regency Blue
PG442 Sky Blue
PG442 Sky Blue
PG544 Bright Green
PG544 Bright Green
PG545 Autumn Green
PG545 Autumn Green
PG546 Teal
PG546 Teal

Downloads

Support

Customer Support

For same day design assistance and technical support please contact our sales team directly on the below contact details. All our sales and technical staff are locally based so we can provide the best possible service and support for your project. You can also request a technical data sheet or project quotation using the below email links;

Ben Kennard Daniel Hornsey Ryan Webb
NSW & ACT Product Manager VIC & TAS Product Manager WA & SA Product Manager
1300 945 123 1300 945 123 1300 945 123
0400 888 333 0429 936 164 0424 755 325
This email address is being protected from spambots. You need JavaScript enabled to view it. This email address is being protected from spambots. You need JavaScript enabled to view it. This email address is being protected from spambots. You need JavaScript enabled to view it.
LinkedIn Profile LinkedIn Profile LinkedIn Profile
Scott Wallis
QLD & NT Product Manager
1300 945 123
0488 906 444
This email address is being protected from spambots. You need JavaScript enabled to view it.
LinkedIn Profile
